Introducing the 135Ah Cold Climate Lithium (LiFePO4) Deep-Cycle Batteries: Power You Can Rely on in Any Weather

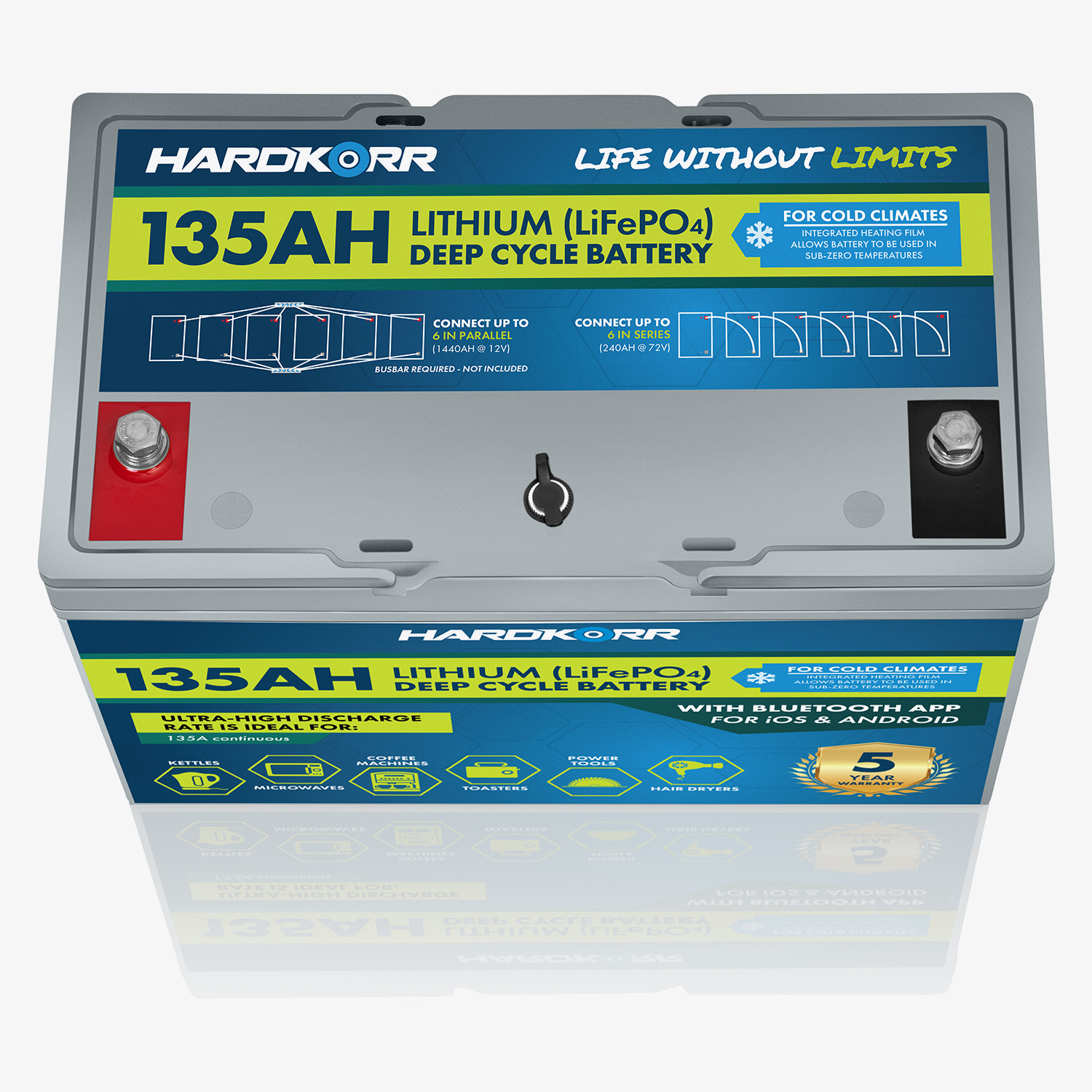

The latest 135Ah lithium deep-cycle batteries are the most reliable and technologically advanced batteries ever manufactured, now with added features for cold climates. With Bluetooth® monitoring, outstanding performance characteristics, and full international certification, these batteries ensure you’re never short of 12V power on your 4WD and camping adventures. Best of all, 135Ah of usable power is packed into a standard Group 27 (N70) size case, making them compatible with standard battery boxes and trays.

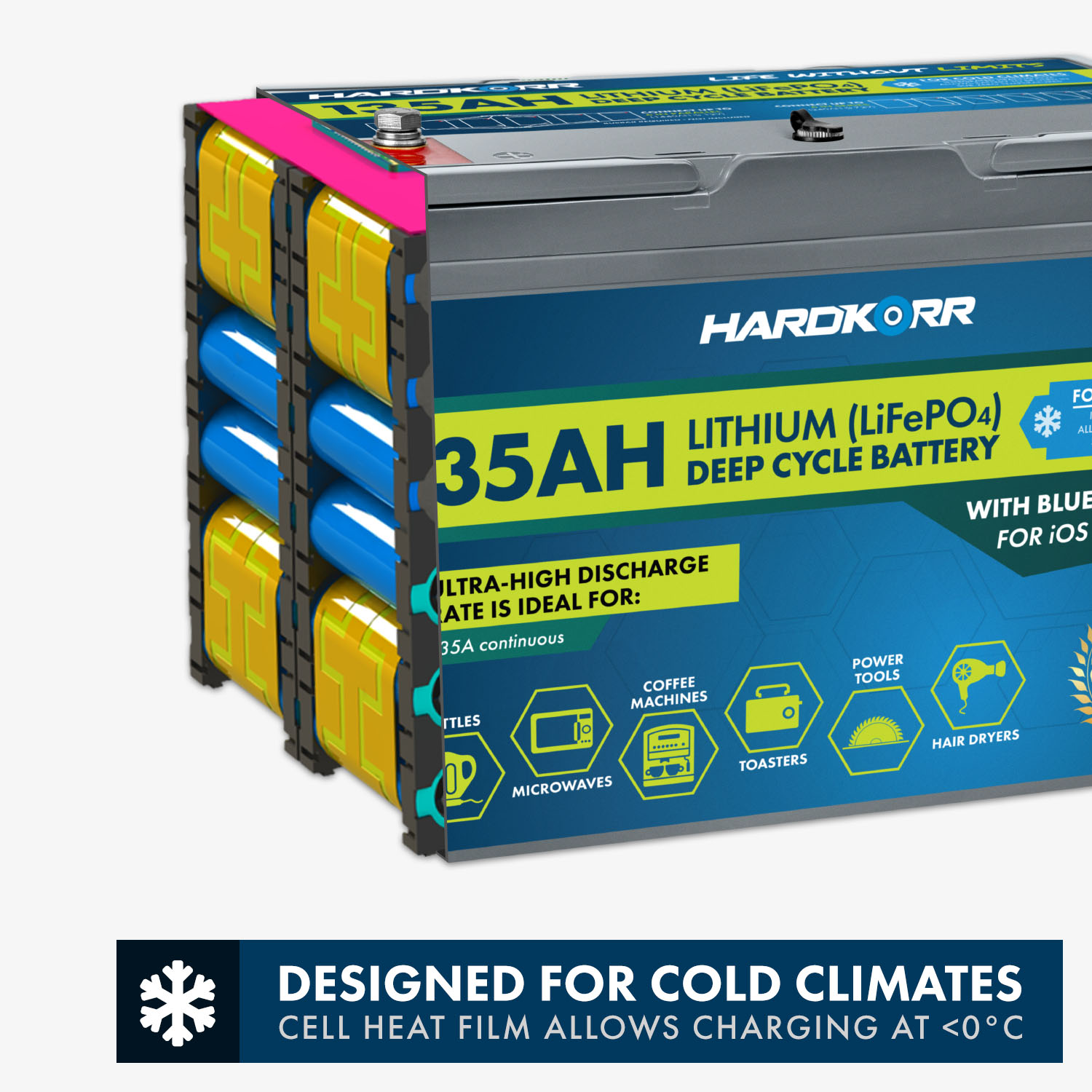

Cold Climate Ready

This model features the latest innovation: cells wrapped in a heating film that automatically activates when the BMS detects ambient temperatures below 0°C. Unlike other batteries on the market, you can continue to charge your battery even in freezing weather, down to -20°C. This fully automated process ensures your cells stay within the optimal charge temperature range, allowing you to focus on your adventures without worrying about the cold.

Advanced Manufacturing and Rigorous Quality Assurance

These batteries are crafted using best-in-class robotic manufacturing processes, featuring rigorous quality assurance, including serialized tracking and pre-shipment cycle testing. Each battery’s test report is stored for future reference, ensuring confidence in their performance. Backed by a 5-year Australian warranty, these batteries are built to last.

Top-Quality Cylindrical Cells

The 135Ah deep-cycle lithium batteries are constructed with high-quality 26700 high-discharge cylindrical cells. These cells are carefully matched to ensure minimal internal resistance and voltage differences, then ultrasonically welded to form strong, reliable connections. Encased in custom-molded ABS plastic cell holders, these batteries are designed to withstand shock and vibration, ensuring consistent reliability.

Cylindrical vs. Prismatic Cells

While prismatic cells are lighter and easier to manufacture, cylindrical cells offer greater efficiency, produce less heat, and tend to be more reliable. These advantages led to the decision to use cylindrical cells, similar to the approach taken by Tesla and Rivian, for these batteries.

Certified to International Standards

These lithium batteries meet all required and optional international standards for performance and safety, including:

• UN 38.3: Safety testing for lithium metal/lithium-ion batteries in transport.
• IEC 62133-2:2017: Safety testing for portable lithium batteries under intended use and misuse, including vibration testing.
• IEC 62619:2022: Safety standards for lithium batteries in industrial use.
• CE: Compliance with EU safety, health, and environmental protection requirements.

The manufacturing facility is also certified to:

• ISO 9001: Quality management systems.
• ISO 14001: Environmental management systems.

More Usable Power, Longer Life

Understanding the difference between nominal and C20 capacity is crucial when comparing batteries. The C20 rating represents the number of amps a battery can deliver over 20 hours, providing a realistic measure of performance. Hardkorr values transparency and always quotes the C20 rating, ensuring you receive the accurate and reliable power you expect.

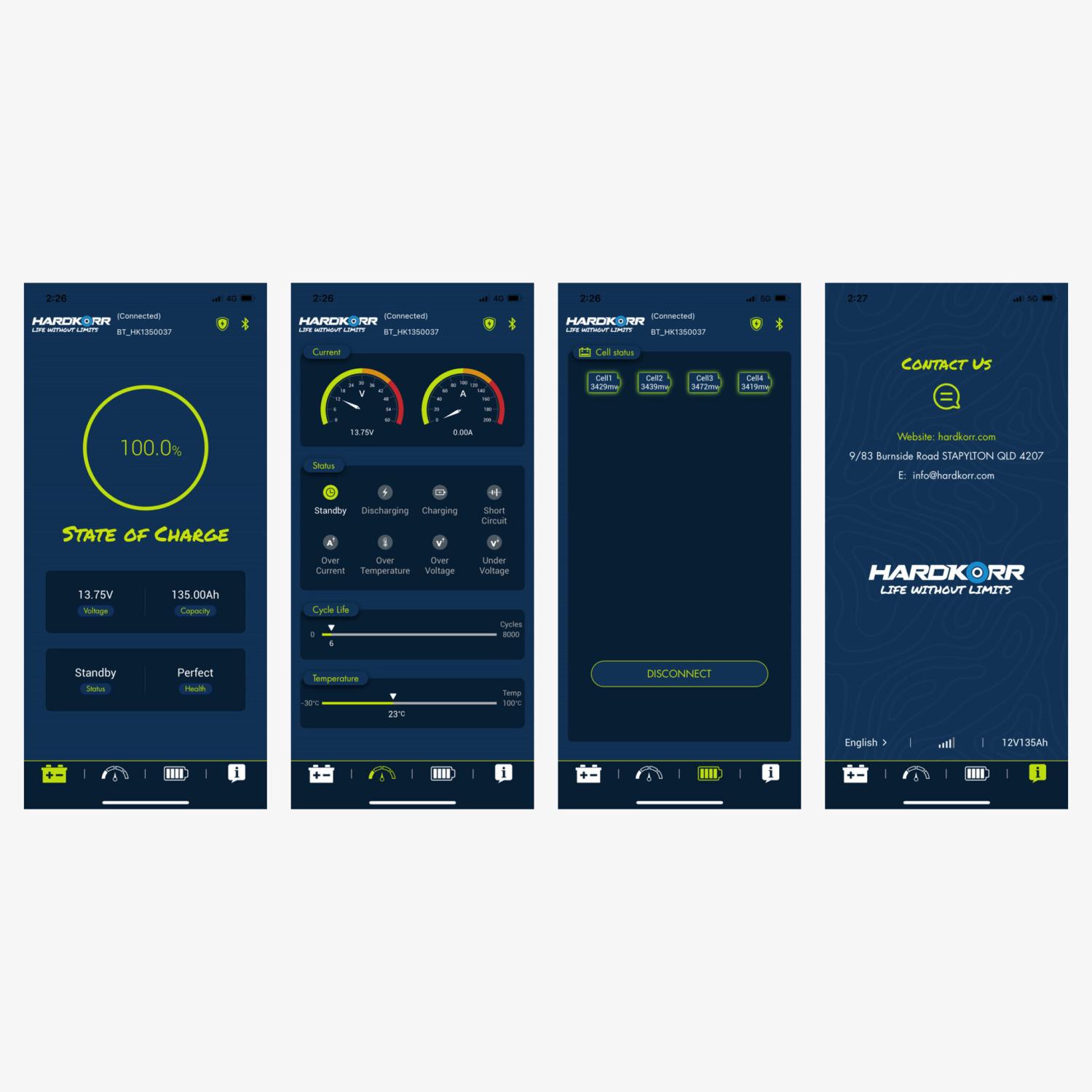

Bluetooth® Monitoring App

These batteries come equipped with Bluetooth® connectivity, allowing you to monitor key data wirelessly through the Hardkorr Battery app, available on iOS® and Android® devices. The app provides:

• Key Information: State of charge, current voltage, available capacity, status, and health.
• Detailed Information: Current voltage, net current in/out, status, cycle life, and temperature.
• Cell Status: Voltage of each cell to ensure balance.
• Contact Details: Quick access to Hardkorr’s website, address, and email for support.

The app also logs any instances where a BMS protection circuit is activated, including over-charge, over-discharge, under-voltage, over-current, and over-temperature.

Why Upgrade to Lithium?

• Long Cycle Life: Lasts up to 10x longer than Sealed Lead Acid (SLA) batteries.
• More Usable Capacity: Safely use up to 70% of capacity, and 99% in emergencies (versus 50%/70% for SLA).
• Lightweight: Approximately half the weight of equivalent SLA batteries.
• Environmentally Friendly: Non-toxic, acid-free, and can be installed in any orientation.

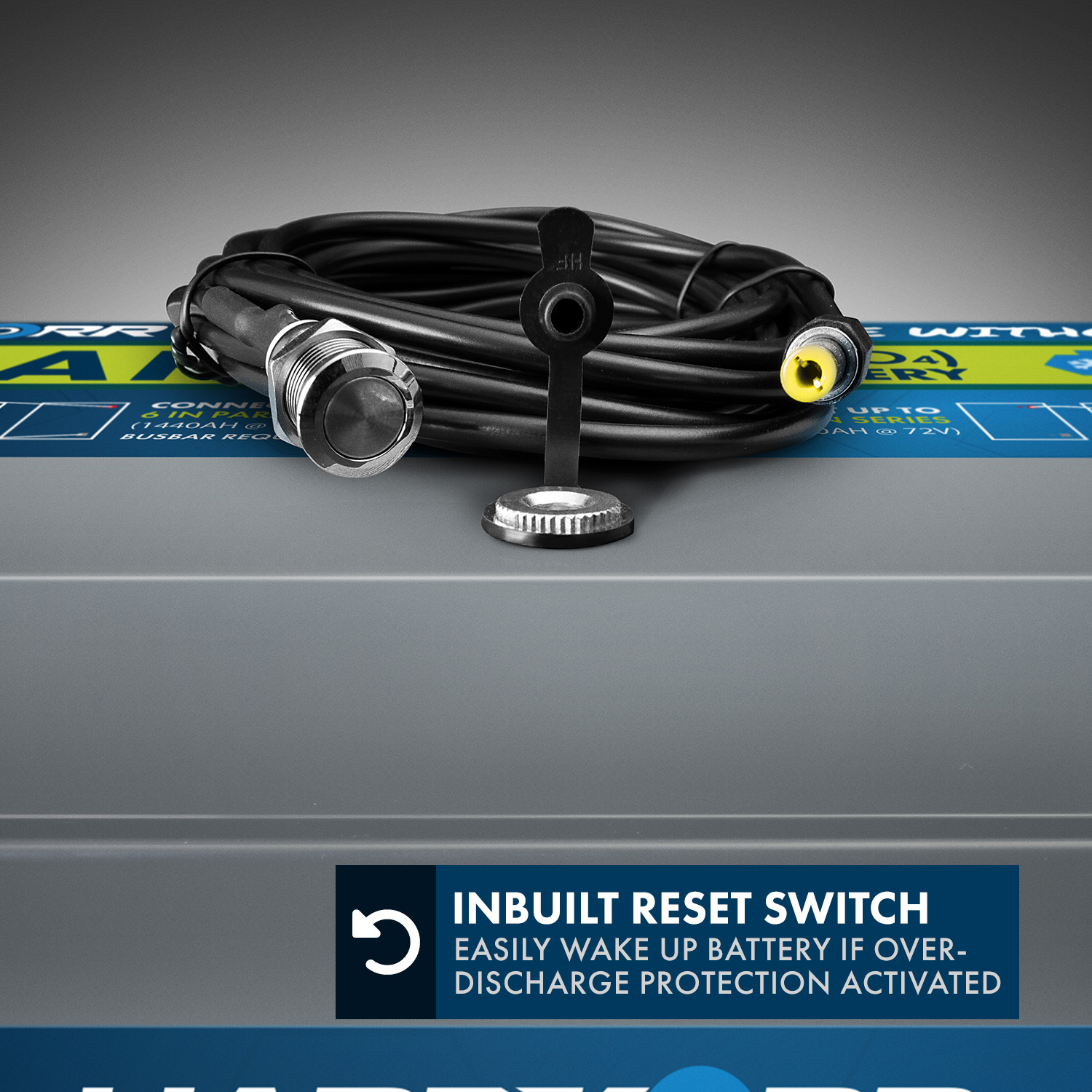

Convenient Remote Reset Switch

The Battery Management System (BMS) in these lithium batteries includes a protection circuit that activates if the voltage drops below 10.0V, putting the battery into 'sleep' mode. Resetting this circuit used to be a challenge, but the included remote reset switch provides an easy solution. Simply connect the switch to the socket on the battery and hold the button for 5 seconds to reset the over-discharge circuit. The switch can also be flush-mounted into your 12V setup for added convenience.

Features:

• 135A (1C) Continuous Discharge
• 6000+ Cycles @ 80% DOD
• Connect 6 in Series or Parallel
• Works in Sub-Zero Temperatures
• IP64 Waterproof & Dustproof
• Bluetooth Monitoring via Phone App
• Comprehensive 5-year Australian warranty

Specifications:

• Nominal Voltage: 12.8V
• Capacity (C20): 135Ah
• Max Series/Parallel Configuration: 6S/6P
• Normal Charge Voltage: 14.4V ± 0.2V
• Standard / Fast Charge Current: 27A / 67A
• Max Discharge Current (Constant): 135A (1C)*
• Max Discharge Current (Pulse): 600A*
• Discharge Cut-off Voltage: 10.0V
• Charge Temperature Range: -20°C to 55°C
• Discharge Temperature Range: -20°C to 60°C
• Storage Temperature Range: -5°C to 45°C
• Ingress Protection: IP64
• Self-Discharge: <3% per month
• Weight: 14.0kg
• Dimensions: 305mm x 169mm x 210mm (Group 27)

Certifications:

• UN 38.3
• UL 1642
• IEC 62133-2:2017
• IEC 62619:2022
• CE

Attention: This battery is not suitable for under-bonnet use.

Note on Discharge Current: If multiple batteries are connected in parallel, the maximum discharge current is multiplied by the number of batteries in the array. For example, connecting two of these batteries in parallel allows for a discharge of up to 270A.
