Top-Quality LED Chips and Reflectors

This light bar is built with high-performance OSRAM® OSLON SSL 150 LED chips, known for their efficiency, durability, and corrosion resistance. These chips feature a 150° viewing angle, crucial for achieving wide beam coverage. Their low thermal resistance ensures they stay cooler and maintain consistent performance over time. The 5700K colour temperature provides balanced, natural lighting for clear visibility without causing eye strain from glare.

These LEDs are paired with expertly engineered, vacuum-metallised polycarbonate reflectors, creating a 180° beam angle. This broad coverage allows you to see far into the distance while remaining aware of nearby hazards, such as kangaroos, giving you time to take evasive action.

Precision Manufacturing

The housing and lens are robotically manufactured and assembled to ensure a perfect seal against dust and water ingress. We use only the highest quality materials, ensuring long-lasting durability even in harsh conditions.

Intelligent Design

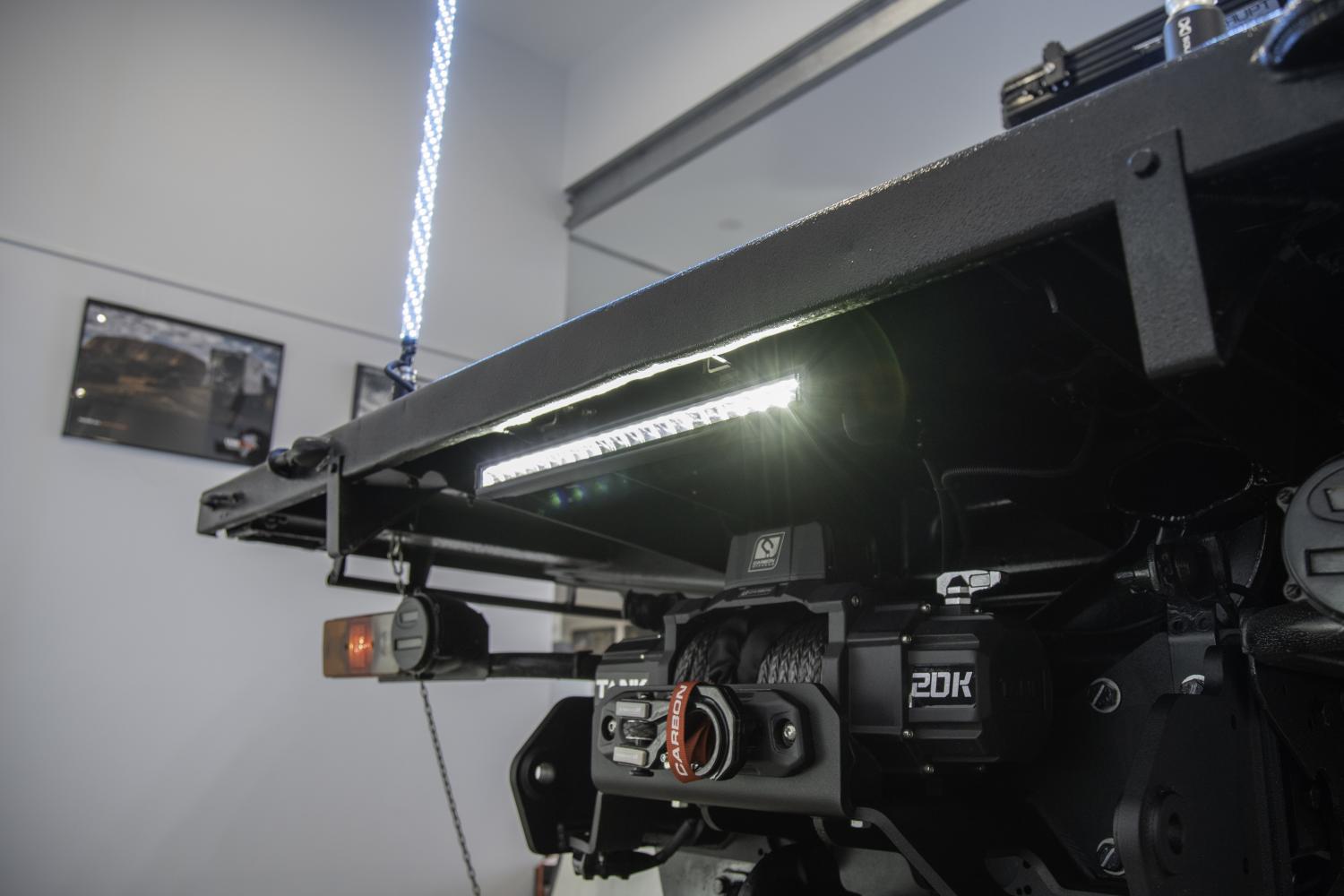

Our Hyperion light bars are engineered to fit in tight spaces like grilles and under roof racks. They are designed to be as slim as possible, with a height of just 52.1mm when using end-mount legs and 63.6mm with under-mount legs.

Customisable Options

To suit your specific vehicle and application needs, we offer extensive customisation. Each light bar comes with three pairs of coloured side inserts, with seven additional colours available for purchase. You can switch between high and low modes, as well as between orange and white daytime running lights (DRLs). For added protection and style, we also offer black, orange, and clear covers.

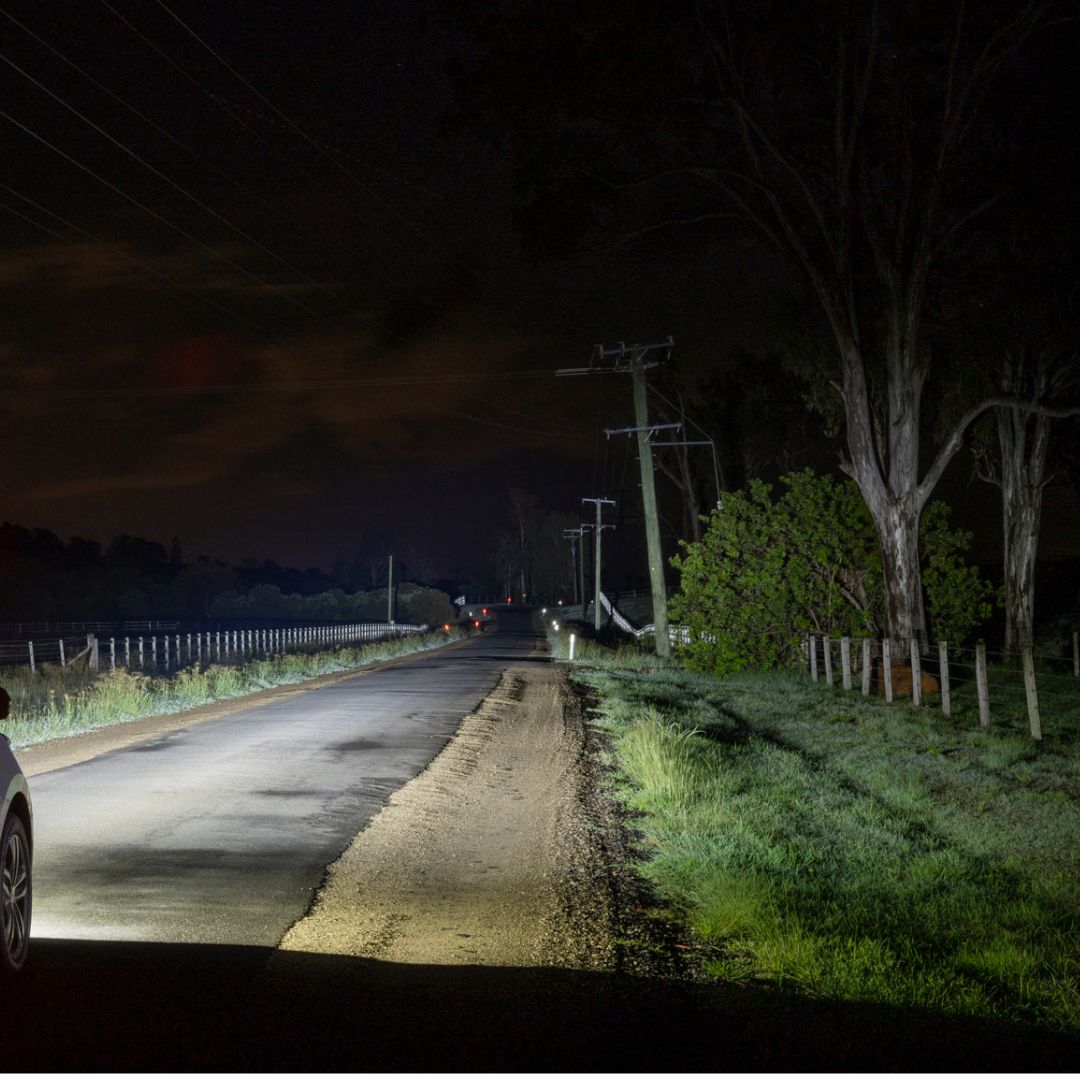

Powerful Beam with 180° Coverage

With two brightness settings and a powerful combination beam pattern, this light bar provides the spread and reach needed for any situation.

Features:

• 1 LUX @ 492M
• Premium OSRAM LEDs
• IP68/IP69K Waterproof & Dustproof
• HyperFlood 180° Beam
• 5700K Colour Temperature
• CISPR25 Certified EMC Protection
• Comprehensive 5 years warranty

Specifications:

• Materials:
  • 6063 aluminium housing
  • UV hardcoated polycarbonate lens
  • Vacuum-metallised aluminium reflectors
• LED Type: OSRAM OSLON® SSL 150
• Power: 105W
• Beam Distance: 1 lux @ 492m (high) / 1 lux @ 208m (low)
• Output (Raw): 8,820 lumens
• Output (Effective): 6,020 lumens (high) / 1,100 lumens (low)
• Peak Intensity: 242,000 candela
• Colour Temperature: 5700K
• DRL Colour: Settable orange / white
• Operating Voltage: 10 – 30V DC
• Current Draw (12V): 7.32A (high) / 1.28A (low)
• Current Draw (24V): 3.66A (high) / 0.66A (low)
• DRL Power Draw: 0.61A @ 12V / 0.33A @ 24V
• Operating Temperature: -30°C to 65°C
• Weight: 1.491kg
• Certifications: CE, CISPR25, ISO 7637-2:2004

Pack Contents

• 1x 20" Hyperion LED light bar
• 1x Set of end-mount legs
• 1x Set of under-mount legs
• 1x Wiring harness
• 3x Pairs of coloured inserts (blue, black, grey)
