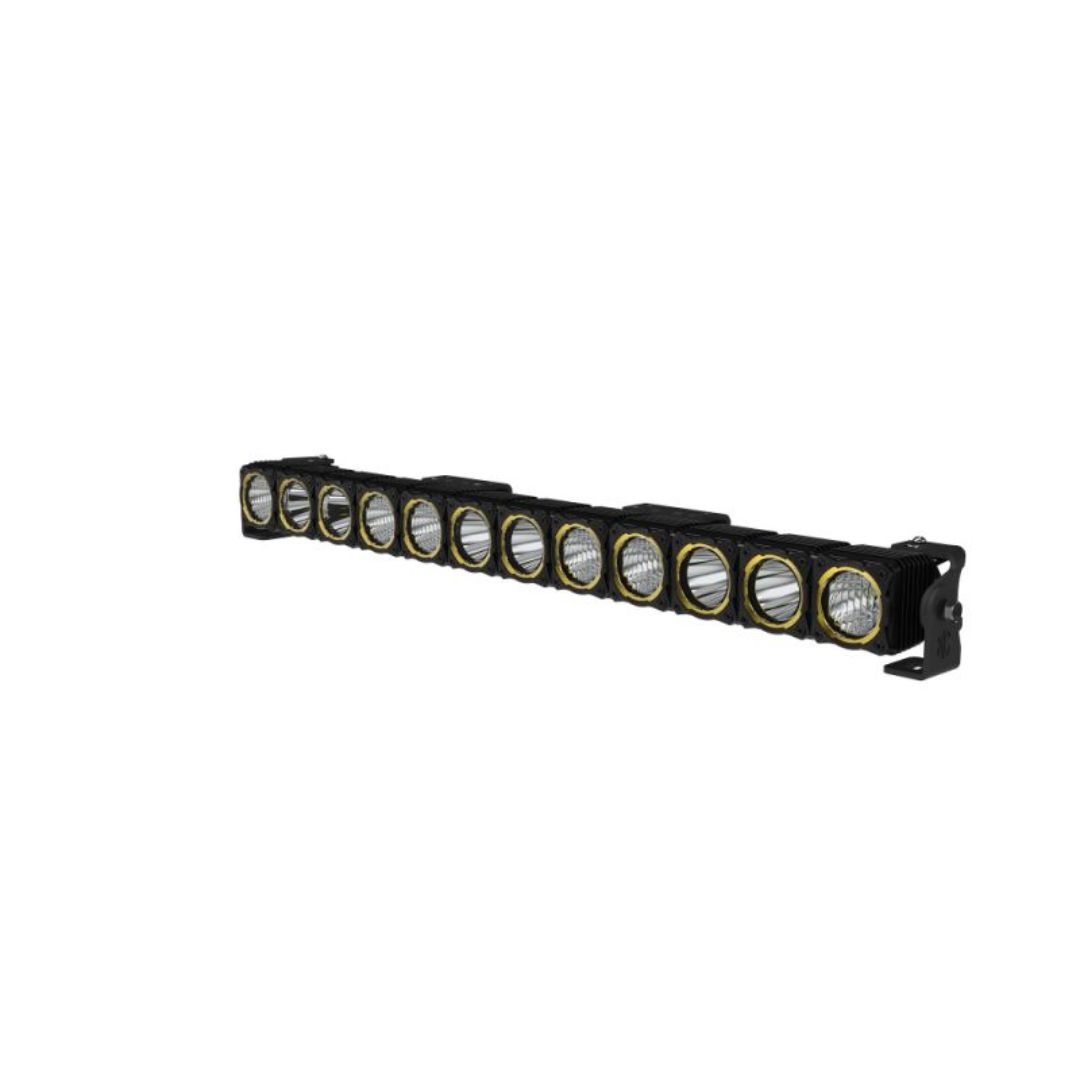

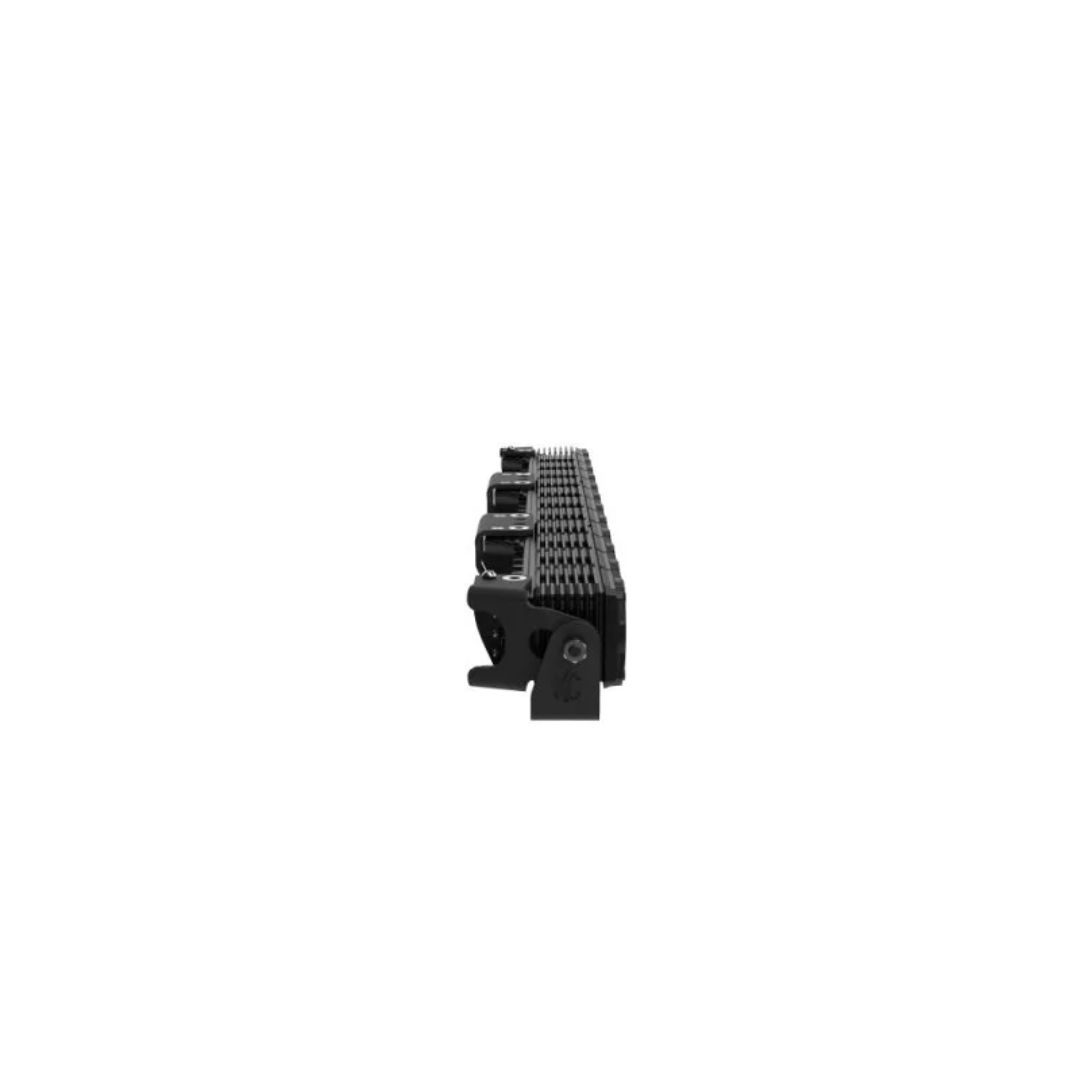

KC FLEX ERA® LED Light Bar - 30 - Master Kit

$2,930.00 (inc GST)

Postage for this will not be included in the final price of this order. You can either pick up this item, or we can quote on postage, after you place your order

The KC FLEX ERA® LED Light Bar is engineered to redefine what's possible for light bars. As the advanced successor to the original FLEX Array, this bar combines high-output performance with a flexible design that builds on the strengths of its predecessor. The FE Bar delivers unmatched functionality and power, unlike anything else on the market.

With superior beam quality and visibility, the KC FLEX ERA® LED Light Bar ensures you’ll see every obstacle in your path. The versatile design allows for linking, curving, and optics customization. True to KC’s heritage, it’s fully customizable, with various accessories for precise tuning, stunning aesthetics, and the robust KC build quality. Imagine new possibilities with the FLEX ERA® LED Light Bar.

Features:

  • High-Output Performance for extreme visibility and high-speed adventure
  • Flexible Design to adjust length, curvature, and optics
  • Master Kit includes all beam pattern lenses:
    • Combo Beam (pre-assembled)
    • Spot Beam Lenses
  • Two Power Modes:
    • Amber LED Backlight
    • Full Power (for off-road use only)
  • Customizable Aesthetics for a personalized look
  • Legendary KC Build Quality with the Adventure Further Guarantee

Specifications:

  • Lumens: 23,736 lm @5000K
  • LUX @ 10 meters: 4,830 lx (combo) / 5,400 lx (spot)
  • Candela: 483,000 cd (combo) / 540,000 cd (spot)
  • Beam Distance: 695 m (combo) / 735 m (spot)
  • Beam Pattern: Combo/Spot
  • Wattage: 36W (Amber Backlight) / 324W (High-Power)
  • Amp Draw @ 12V: 3.0A / 27.0A
  • Voltage: 9V-36V
  • IP Rating: IP68
  • Product Dimensions:
    • Straight: W - 31.36" x H - 2.66" x D - 3.85"
    • Curved: W - 31.28" x H - 2.66" x D - 3.85"

Included:

  • (3) 10" KC® FLEX ERA® LED Light Bars
  • (2) Linker and End Mount Assembly Kits
  • (3) Combo Beam Lenses (pre-installed)
  • (3) Spot Beam Lenses
  • (3) Light Covers - Black with Yellow KC Logo
  • (1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch
