Disclaimer: There are two versions, one has a synthetic rope and the other is steel cable.  The synthetic rope is the strongest option, we recommend this for all our customers and our projects.

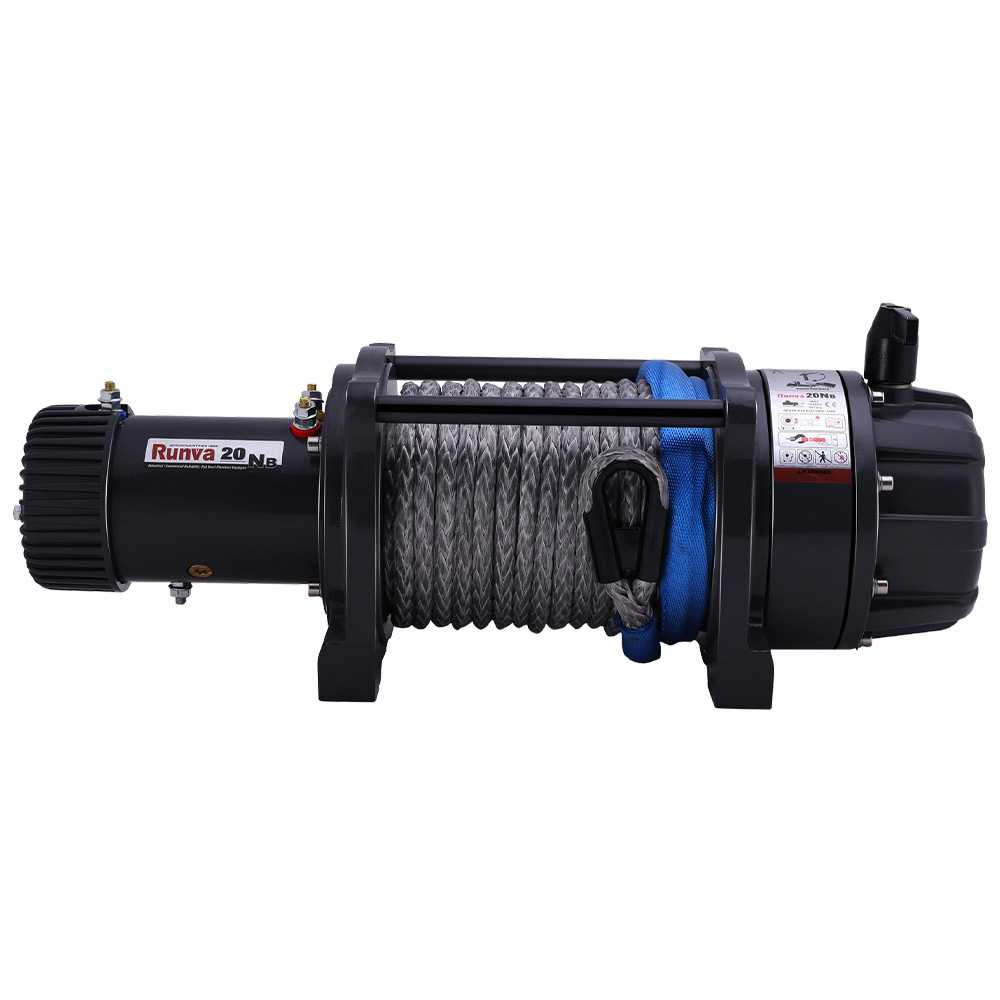

The Runva EWB20000 Premium is our extreme duty 20,000lb recovery winch. Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 370:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of 8.5M/Min*, this winch will get the job done in no time.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

If you are looking for a heavy duty winch, for either recreational or commercial applications, the EWB20000 Premium is the winch for you. This model is perfect for your expeditions.

What's Included

Specifications

RATED LINE PULL 20,000LB (9,072KG)

MOTOR 6.1KW/8.2HP

GEAR TRAIN FULL STEEL 3 STAGE PLANETARY

GEAR RATIO 370:1

CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH

CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED

BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX

CABLE TYPE SYNTHETIC ROPE

CABLE SIZE 12MM X 26.5M

DRUM SIZE 88MM X 217MM

MOUNTING BOLT PATTERN 254MM X 114.3MM; 254MM X 165.1MM
(8X M12 BOLTS)

We are able to supply all of the RUNVA Winches, if you are interested please contact us!
